A JavaScript Data Display Framework


Simon Heimler University of Applied Sciences Augsburg


  • Side project of my masters degree
  • Working prototype / proof of concept

About plastic.js

Data Display Framework

Data Display
Data representation in general, not just visualizations

Not another library, but a framework to bind them all

Current Situation

  • Countless JavaScript visualization libraries available
  • Each works differently
  • Some are specialized for one task
  • Some are tied to a very specific envirionment
  • Nearly all of them require programming knowledge

plastic.js Specs (1/2)

  • Open Source: github.com/Fannon/plastic.js
  • Platform neutral: Pure HTML5
  • Easy to use: No programming skills required
  • Modular: Loosely coupled architecture
  • Extensible: Data Modules, Query Modules, Display Modules

plastic.js Specs (2/2)

  • Framework: Providing a platform for existing libraries
  • Dependency Management: "Smart" lazy loading
  • Schemas: Uses schemas, falls back to duck-typing
  • Async: Runs asyncronally and possibly multithreaded

Usage & Examples

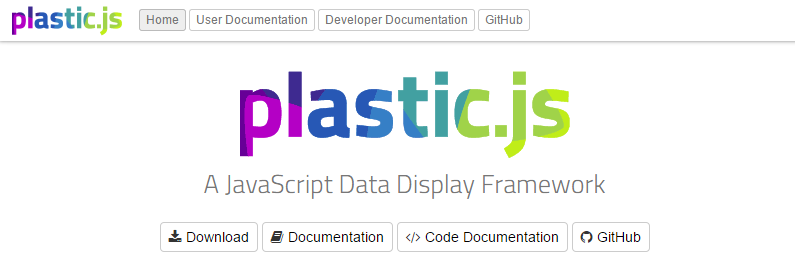

Download from www.plasticjs.org

Include plastic.js in a HTML page

<link rel="stylesheet" href="lib/plasticjs/plastic.css">
<script src="lib/plasticjs/plastic.js"></script>


plastic.js Usage

  • Can be put into any HTML page through an embed code
  • Lightweight wrapper extensions for common CMS
  • Example: MediaWiki Wrapper Extension

Simple Table from JSON

<plastic style="height: 400px; width: 800px;">

    <div class="plastic-data"

    <div class="plastic-display" data-module="simple-table"></div>


Simple Table from JSON

Simple Bars from SPARQL Endpoint

<div class="plastic-js" style="height: 400px">
    <script class="plastic-query" type="application/sparql-query" data-query-url="http://dbpedia.org/sparql">
        PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>
        PREFIX type: <http://dbpedia.org/class/yago/>
        PREFIX prop: <http://dbpedia.org/property/>

        SELECT ?country_name ?population
        WHERE {
            ?country a type:LandlockedCountries .
            ?country rdfs:label ?country_name .
            ?country prop:populationEstimate ?population .

            FILTER (?population > 12000000 && langMatches(lang(?country_name), "en")) .
        ORDER BY DESC(?population)
    <script class="plastic-display" data-module="discrete-bar-chart" type="application/json">
            "tooltips": true,
            "showValues": true


Simple Bars - Result

User Documentation

Developer Documentation

Technical Details

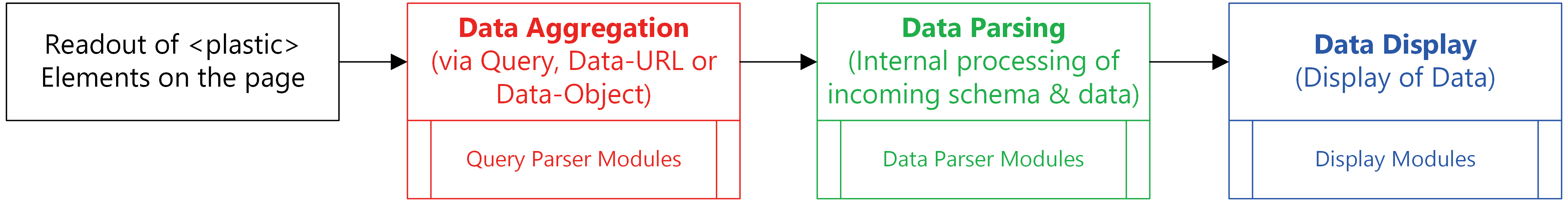

Module Sequence Flow

Internal datastructure

  • 2.5D Table: Table where each cell is an array of values of the same datatype
  • Not the most flexible dataformat, but a good compromise of flexibility and easy usage.

JSON Schema at heart

  • Lightweight alternative to XMLSchema
  • Describes the data to the display modules
  • Validating incoming data and options
  • Auto-generate parts of the user documentation

Current State

In early development

  • Working Architecture
  • Several data formats supported
  • Able to query SPARQL Endpoints and semantic wikis
  • A few simple display modules (tables, bars, pies)
  • Wrapper Extension for MediaWiki


  • Automatically reflect and apply changes from the embed code
  • Provide more modules
  • Documentation++

Problems to solve

  • How to deal with tree and graph data?
  • Some Display Modules make only sense with a specific kind of data.
  • Manage Module Requirements and Features.
  • Asynchronous exception handling


OpenSource at GitHub:

Presentation online at:
